WR250R / WR250X Headlight, Tail Light and LED Turn Signal Guide

Home > Dual Sport > Yamaha WR250X/R Parts > Modification Guide > Lighting/Electrical Guide

We get alot of emails and phone calls about replacing the stock headlight, tail light and turn signals on the WR250R / WR250X, so we decided to put together this lighting guide. I've broke it down into several different sections...

- REPLACING THE FACTORY HEADLIGHT BULB
- REPLACING THE FACTORY REAR TAIL LIGHT AND TURN SIGNALS
- REPLACING THE FACTORY FRONT TURN SIGNALS
- PACKAGE DEALS
- OTHER PRODUCTS TO CONSIDER



REPLACING THE FACTORY HEADLIGHT BULB


WR250R-Cyclops-LED-Headlight-Bulb

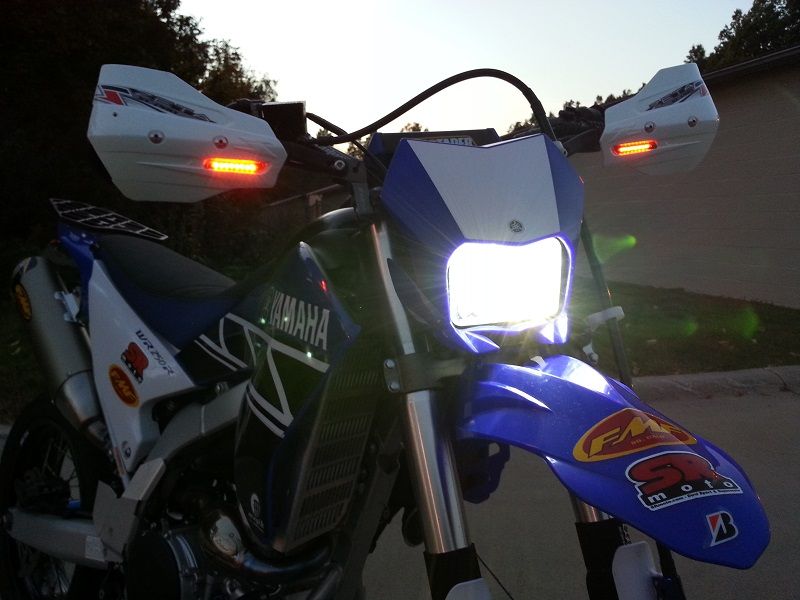

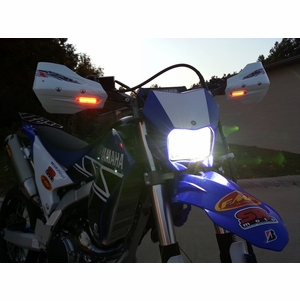

OPTION 1: Cyclops LED Headlight Bulb (shown in photo above)
If you're looking for the brightest headlight bulb available for your WR250R / WR250X, the Cyclops 10.0 H4 LED bulb is the answer. These are the brightest, smallest and most reliable H4 replacement LED bulbs available on the market today! They provide HID performance with all the benefits of LED, and are an amazing upgrade over the stock Halogen headlight bulb, or even the PIAA Halogen bulbs discussed above. The bright white light they provide will light up road hazards, and make you much more visible on the road.

Links:
  • Cyclops H4 LED Headlight Bulb


    OPTION 2: PIAA Halogen Headlight Bulb
    If you're looking for a high quality and affordable replacement headlight bulb for your WR250R or WR250X, PIAA makes a few bulbs that we really like. Their Xtreme White Plus bulb will provide a brilliant Xtreme cool white light that will light up road hazards and street signs long before a normal halogen bulb. Their Super Plasma Gt-X Anti-Vibration Halogen bulb provides an exclusive purple beam along with greater performance over standard bulbs.

    Links:
  • PIAA Motorcycle Headlight Bulbs



    REPLACING THE FACTORY REAR TAIL LIGHT AND TURN SIGNALS

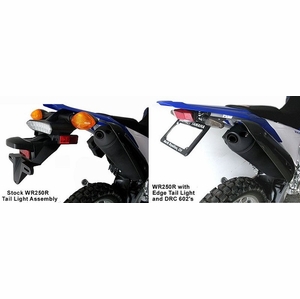

    WR250R-Stock-Rear-Tail-Light-vs-Edge-Tail-Light-Large

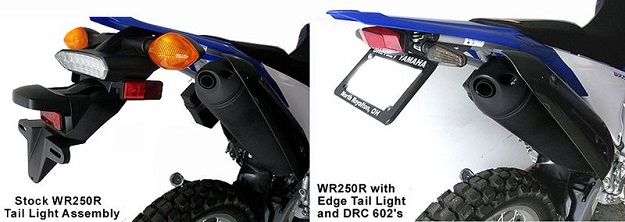

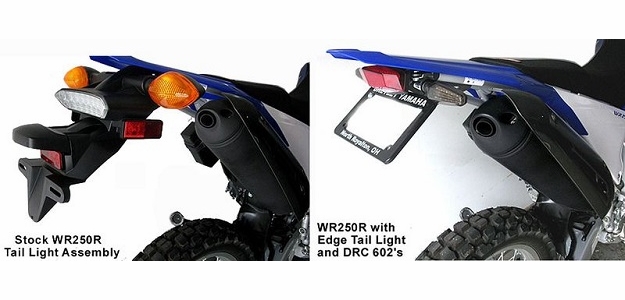

    OPTION 1: DRC Edge2 Rear Tail Light Kit with DRC Flashers (shown above)
    The most popular way to get rid of that big ugly rear tail light assembly on the Yamaha WR250R (and WR250X) is to replace it with the DRC Edge Tail Light Kit and a pair of bolt on turn signals/flashers, like the DRC Type 601 or Type 602. The Edge Tail Light kit bolts directly to the sub-frame of the WR250R/X, and the DRC Type 601/602 turns signals bolt to the Edge Tail Light kit itself. This setup gives you a nice compact tail light/turn signal assembly that looks 100x better than the stock unit.

    Links:
  • WR250R/X DRC Edge2 Tail Light Kit
  • DRC Type 601 Flashers
  • DRC Type 602 Flashers
  • WR250R/X Lighting Package Deal

    OPTION 2: DRC Edge2 Rear Tail Light with 12oclockLabs DRC Edge2 Processor Upgrade Board
    Another way to replace the stock WR250R/X tail light assembly is to purchase the DRC Edge2 Tail Light Kit along with the 12oclockLabs DRC Edge2 Processor Upgrade Board, which installs inside the DRC Edge2 Tail Light. We've created a package deal that includes both products (see below). With this setup, you will not have separate bolt-on rear turn signals because the 12oclockLabs DRC Edge2 Processor Upgrade Board integrates the turn signals/flashers into the tail light itself. This makes for an even more compact rear tail light/turn signal assembly. This tail light also features safety brake pulsing, and brighter overall LED's than the standard DRC Edge2 Tail Light.

    Links:
  • WR250R/X DRC Edge2 Integrated Tail Light Package Deal



    REPLACING THE FACTORY FRONT TURN SIGNALS

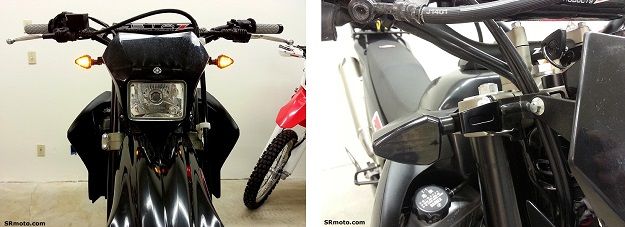

    WR250R-DRC-LED-Turn-Signals

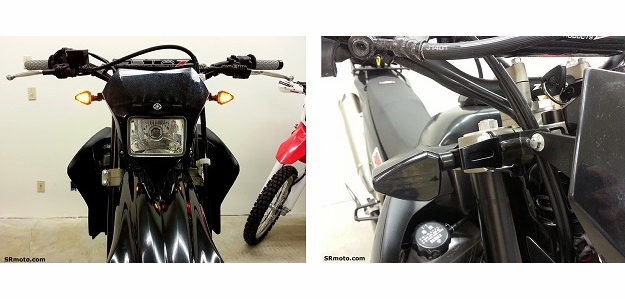

    OPTION 1: DRC Type 601 or Type 602 Flashers w/ DRC Mounting Brackets (shown above)
    One of the more popular ways to get rid of the huge stock front turn signals on the WR250R/X is to replace them with a pair of DRC Type 601 or Type 602 turn signals/flashers, using DRC Front Turn Signal Brackets to attach them to the upper fork triple clamp bolts (click photos above). To get the new LED turn signals/flashers to operate as running lights AND to flash at the slow stock flash rate, see the section labeled "Other Products To Consider" at the bottom of this page.

    Links:
  • DRC Type 601 Flashers
  • DRC Type 602 Flashers
  • DRC Front Turn Signal Mounting Brackets
  • WR250R/X Lighting Package Deal



    WR250R-Zeta-handguards-with-LED-Turn-Signals

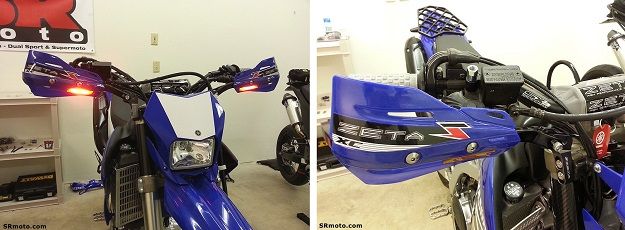

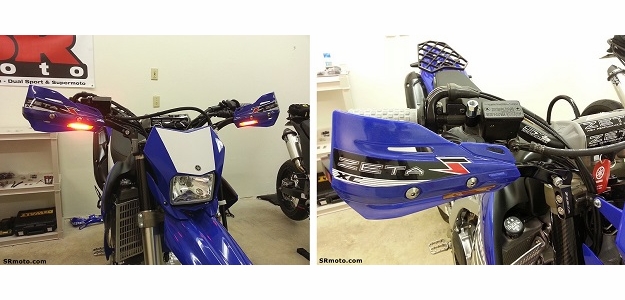

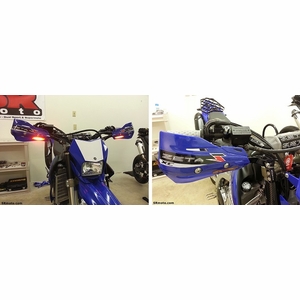

    OPTION 2: Zeta Armor Hand Guards with Zeta XC Flasher Protectors (shown above)
    Another popular way to replace the stock WR250R/X turn signals is to purchase a set of Zeta Armor Handguards along with the Zeta XC Flasher Protectors (click photos above). This trick little setup integrates a pair of turn signals/flashers into the plastic part of the hand guards. To get the new LED turn signals/flashers in the XC Protectors to operate as running lights AND to flash at the slow stock flash rate, see the section labeled "Other Products To Consider" at the bottom of this page.

    Links:
  • Zeta Armor Hand Guard Package Deal
  • Zeta PRO Armor Hand Guard Package Deal



    PACKAGE DEALS:


    Everything you need to replace the stock tail light and front/rear turn signals...
  • WR250R/X Lighting Package Deal

    Replace the stock front turn signals with turn signals that are integrated into the hand guards...
  • Zeta Armor Hand Guard Package Deal

    Replace the stock tail light and rear turn signals with the DRC Edge2 Tail Light that has turn signals integrated into it...
  • WR250R/X DRC Edge2 Integrated Tail Light Package Deal



    OTHER PRODUCTS TO CONSIDER


    12oclockLabs Running Light Adapters
    Many bikes will come from the factory with turn signals/flashers that also operate as running lights when the bike is turned on and/or running. On dual sport bikes like the WR250R/X, only the front turn signals/flashers operate as running lights. If you install aftermarket LED turn signals/flashers, like the DRC Type 601, DRC Type 602, or even the Zeta XC Flasher protectors, you will lose the running light feature. If you want to retain that, you need to install a 12oclockLabs Running Light Adapter.

    Links:
  • 12oclockLabs Running Light Adapters

    12oclockLabs Fixed Rate Turn Signal Flasher
    If you install aftermarket LED turn signals/flashers, like the DRC Type 601, DRC Type 602, or even the Zeta XC Flasher protectors, they will flash at a faster rate than the stock turn signals did. This is because OEM flashers are designed for standard bulbs which draw a few watts each, much more than typical aftermarket bulbs or LED signals. If you want your new LED's to flash at the slower rate of the factory turn signals, you will need to install a 12oclockLabs Fixed Rate Turn Signal Flasher.

    Links:
  • 12oclockLabs Fixed Rate Turn Signal Flasher

    12oclockLabs DRC Edge2 Processor Upgrade Board
    The standard DRC Edge Tail Light mentioned several times above is pretty bright, but if you want something even brighter, then you will want to install a 12oclockLabs DRC Edge2 Processor Upgrade Board into your standard DRC Edge Tail Light. Not only does it make the standard Edge Tail Light brighter, but it also has features like safety brake pulsing and integrated turn signals.

    Links:
  • 12oclockLabs DRC Edge2 Processor Upgrade Board

    12oclockLabs Programmable Animated Turn Signals
    12oClockLabs has created one of the coolest LED turn signals available on the market. These LED flashers feature programmable animated turn signal technology, packed into a compact motorcycle turn signal. With 8 selectable turn signal modes, built in running light adapter capability, and internal flash rate control capability, this product delivers everything you have ever wanted out of an LED turn signal and more.

    Links:
  • 12oclockLabs Programmable Animated Turn Signals
