(Levers can be purchased individually or as a set
 *** SPECIAL DISCOUNTED PRICING! ***
Use coupon code ASV at checkout to get 10% off a PAIR of levers!
Home > Moto Parts >
Clutch/Brake Levers
Home > Moto Parts >
Yamaha XSR900 Parts
Home > Moto Parts >
Yamaha R9 Parts
Home > Moto Parts >
Yamaha MT-09 Parts > ASV C5 Series Clutch / Brake Lever

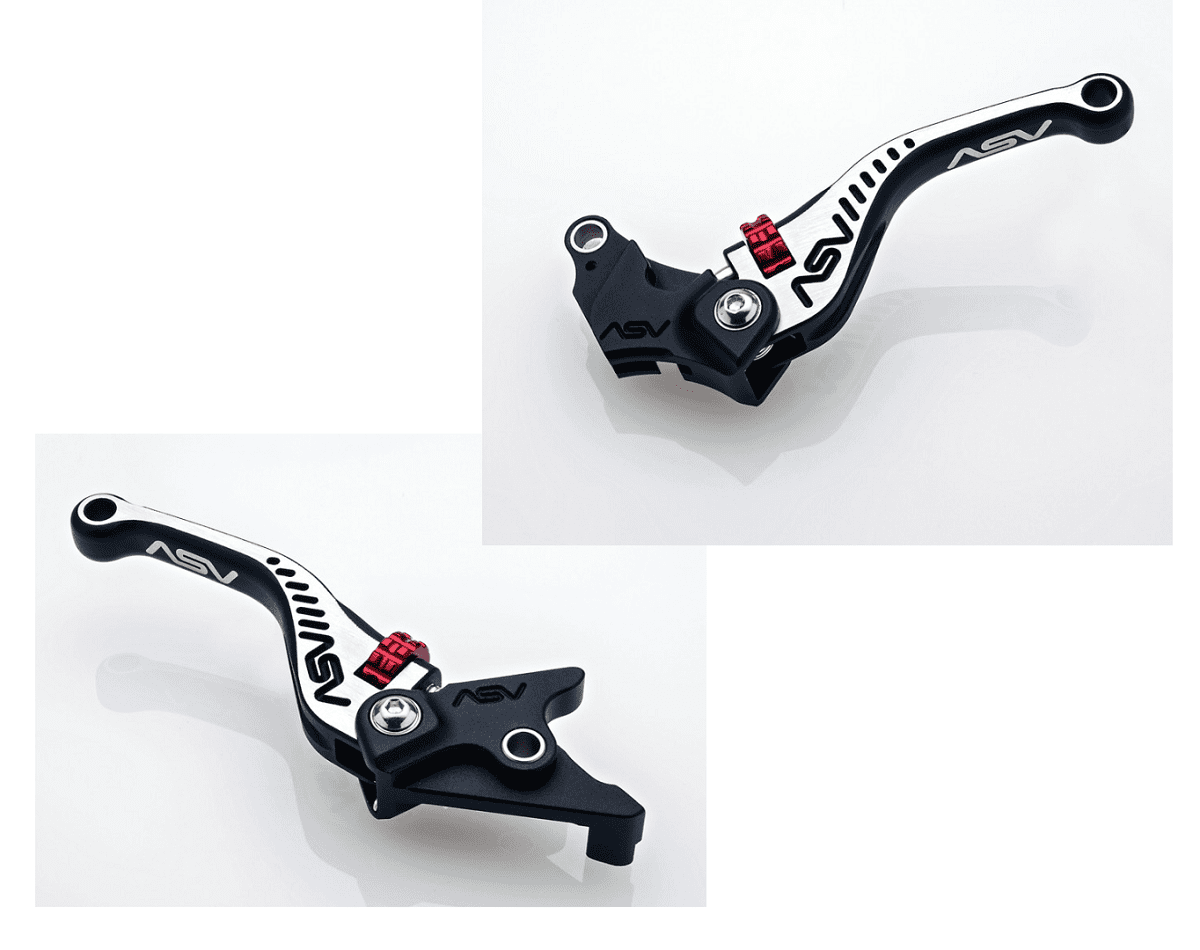

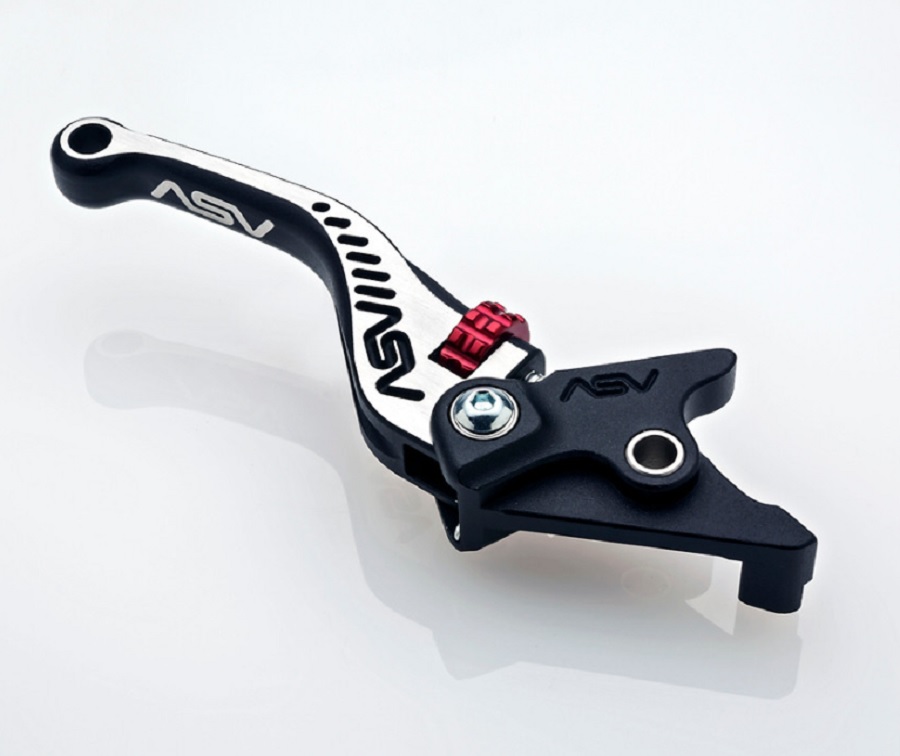

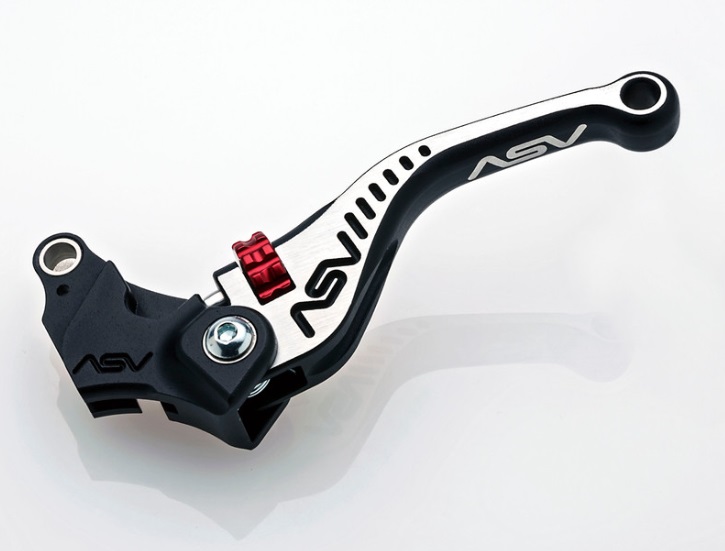

Looking to replace the stock levers on your new 2024+ Yamaha MT-09 / SP , 2025+ Yamaha XSR900, or 2025+ Yamaha R9 ? In our opinion, ASV C5 Series levers are some of the best out there. Their C5 series levers feature an unbreakable lever with pivoting design, as well as adjustable reach with 4 inches of range via the micro-indexing dial reach adjuster. The C5 levers feature CNC-machined 6061 billet aluminum construction, precision-sealed bearings in the pivot, and a 5-year unconditional crash damage guarantee through ASV.
Reach adjustment: One of the biggest advantages to aftermarket levers is the ability to adjust the levers in and out (reach). This allows you to fine tune each lever to fit your preference. ASV levers feature adjustable reach with 4 inches of range via the micro-indexing dial reach adjuster that has 180 increments.
Color: These levers are the very trick looking Black Bicolore, which features a black finish on the front and back of the lever, then the top and bottom of the lever have a silver machined finish. The ASV lettering is silver to match the machined finish. These look great on all colors of the MT-09 / XSR900 / R9, but look especially good on the MT-09 SP with the Black, Blue and Silver finish.
Fitment:
2024+ Yamaha MT-09 and MT-09 SP
2025+ Yamaha XSR900
2025+ Yamaha R9
NOTE: An optional ASV 8mm perch spacer for the clutch lever is available as an option. This can be used to push out the clutch lever a bit further from the handlebars.
Standard Features:
Unbreakable lever with pivot design
Adjustable reach with 4 inches of range
Micro-indexing dial reach adjuster with 180 increments
CNC-machined 6061 billet aluminum construction
Precision-sealed bearings in pivot
5-year unconditional crash damage guarantee
Black Bicolore Levers w/ colored dial adjuster
Clutch Lever Part #: CRC546
Brake Lever Part #: BRC553
Made in USA
(**OPTIONAL) Clutch Lever Perch Spacer: (adds to price)
ASV recommends their optional clutch lever perch spacer, especially if you go with the shorty levers. This will keep the adjuster dial from contacting the control housing when you pull the clutch lever in.
Lever Lengths:
Brake Lever: Shorty (1 1/4" shorter than stock lever) or Standard (same as stock)
Clutch Lever: Shorty (1 1/4" shorter than stock lever) or Standard (same as stock)
Warranty: ASV C5 levers have a 5-year unconditional crash damage guarantee directly through ASV.
Installation:
Links to installation instructions on ASV's website...
Yamaha MT-09 2024+ ASV C5 Clutch lever install
Yamaha MT-09 2024+ ASV C5 Brake lever install
** IN STOCK - Usually leaves our warehouse in 1-3 business days.
|
