Home > Dual Sport > Honda CRF250L Parts > CRF250L DRC Edge2 Integrated Tail Light

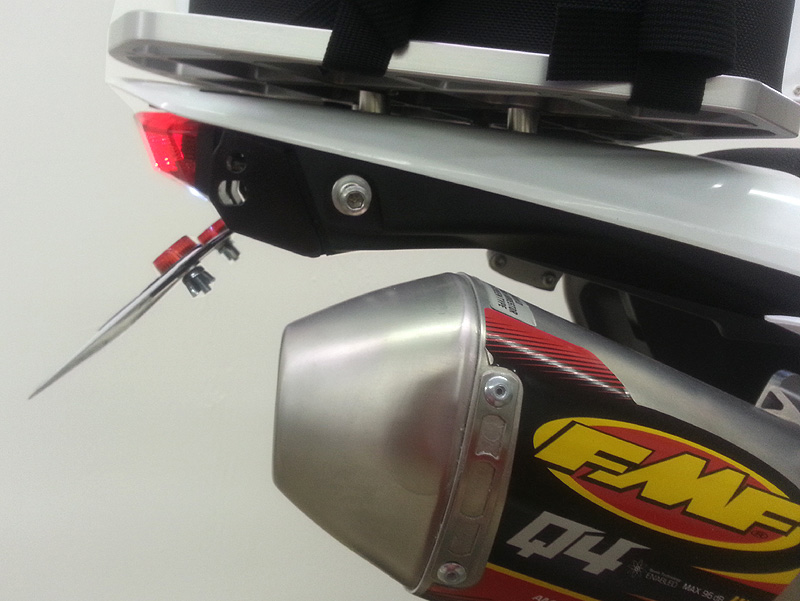

If you're looking to clean up that ugly rear fender on your Honda CRF250L, look no further. This Integrated Tail Light kit provides you with a tail light that has the turn signals integrated into it, and therefore there is no need for separate external rear turn signals/flashers.

This is a new and improved version of the original DRC Edge Integrated Tail Light. Functionally, this kit works the same as the original, but this new version includes the DRC Edge2 tail light and mounting bracket, which is designed specifically for the CRF250L and fits the rear sub-frame of the bike much better. The bracket is now black (instead of silver) and it integrates directly into the black under-fender on the bike, making for a cleaner and nicer looking installation. Additionally, the bracket has mounting points for either aftermarket LED turn signals or even the OEM turn signals, which the other kit does not.

The kit includes a brand new DRC Edge2 Tail Light kit as described above, along with a 12oClockLabs DRC Edge2 Processor Upgrade Board. The upgrade board is a drop in replacement for the OEM LED board inside the Edge2 Tail Light, and provides programmable integrated turn signals, as well as safety brake pulsing. The unit also has brighter LED's than the stock Edge2 board, and is designed with 500,000 life hour capacitors for exceptionally long life operation.

Fitment: 2013-2017 Honda CRF250L

HERE'S WHAT YOU GET:

One (1) Honda CRF250L DRC Edge2 Tail Light Kit:
  • DRC Edge2 tail light holder kit designed specifically for the Honda CRF250L
  • Comes with Edge tail light (red or smoke lens), license plate and flasher mount
  • Compact design that really cleans up rear end of the bike
  • Tail light bracket is made of steel for extreme durability
  • Integrates nicely into the black under-fender on the bike
  • Special oval bolt hole allows to adjust up and down tail light position
  • Two different flasher mounting holes for both OEM and 8mm flashers (if you decide to add those later)

    One (1) 12oClockLabs DRC Edge2 Processor Upgrade Board
  • 5 user selectable turn signal patterns [half chase, full chase, fixed blink, normal blink, etc.]
  • Automatic safety brake pulsing with Enable / Disable
  • The brightest LED's you can get; 500,000mcd light output at maximum brightness
  • Low current draw; with an average 4.5watts at full brightness.
  • Built-in license plate light with 3 super bright white LEDs
  • Includes 34 inch pre-attached wiring harness
  • Includes 30 inch wire harness jacketing
  • 3 year product replacement warranty
  • Made in the USA

    ** OPTIONAL: OEM Wiring Connector Kit - Rear ($10.00):   (Photo)
    This kit can be used to connect the DRC tail light/flashers to the OEM connector/plug on your bike. You install the connector on the wiring for your new tail light and flashers, which then allows you to plug them into the OEM connector/plug already on your bike. Creates a fully plug and play installation!!

    ** OPTIONAL: Fixed Rate Flasher ($28.00):
    A 12oClockLabs Fixed Rate Turn Signal Flasher is HIGHLY recommended for the CRF250L. There have been issues with LED's not working properly on these bikes, and this will address that issue. Additionally, if you install this integrated LED tail light on your CRF, it will make your front turn signals flash at a faster rate than they did with the stock non LED tail light/turn signals. The 12oClockLabs Fixed Rate Flasher will fix that, and slow down the flash rate of your front turn signals. You can choose that option from the drop down below.

    ** OPTIONAL: License Plate Adapter (FREE):   (Photo)
    This DRC tail light is not drilled for U.S. issued license plates, but we now carry the new adapter from DRC that will allow you to mount your U.S. issued license plate to the Edge Tail Light without drilling new holes in your plate or making an adapter yourself. Kit includes mounting bracket (steel), nuts and washers.


    VIDEO REVIEW:





    ** In Stock - Usually leaves our warehouse same business day



    CRF250L DRC Edge2 Integrated Tail Light
    CRF250L-EDGE2-INTRegular Price: $158.99Sale Price: $149.95
    Bike Model Year:
    Tail Light Lens Color:
    OEM Connector Kit:
    Fixed Rate Flasher:
    License Plate Adapter:
  •
